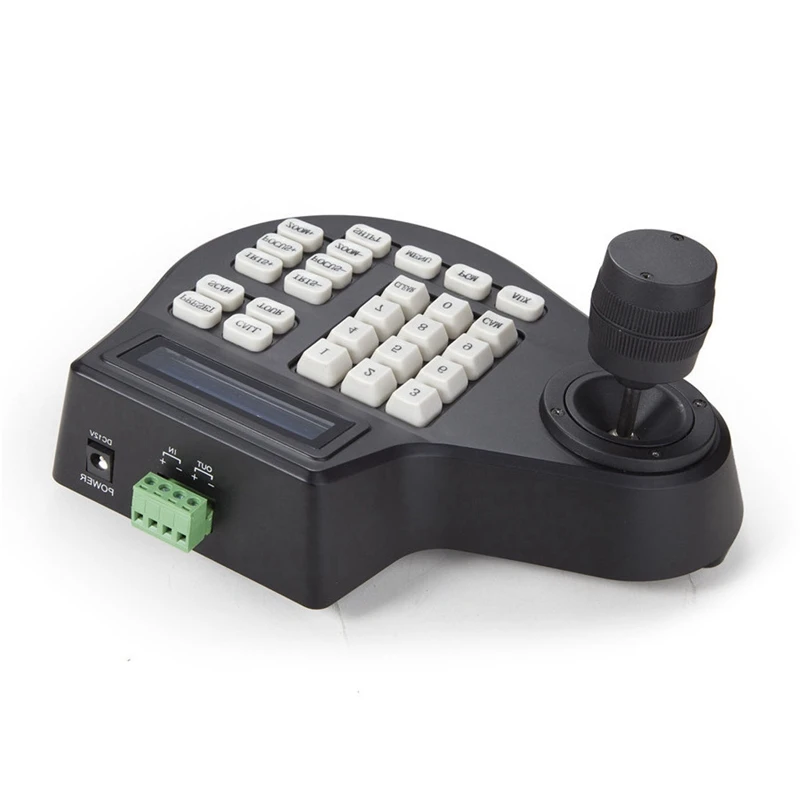

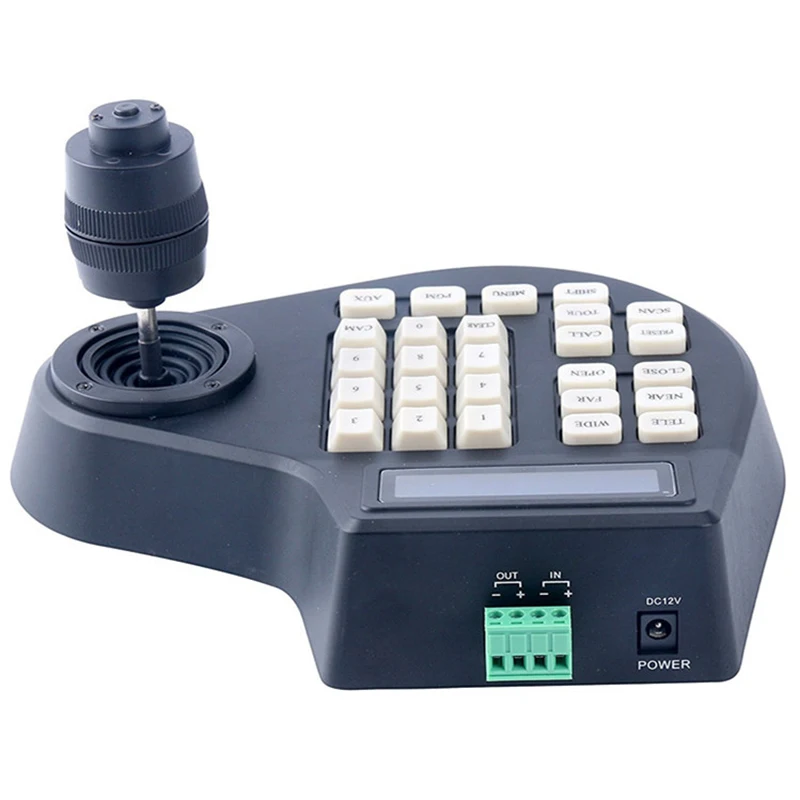

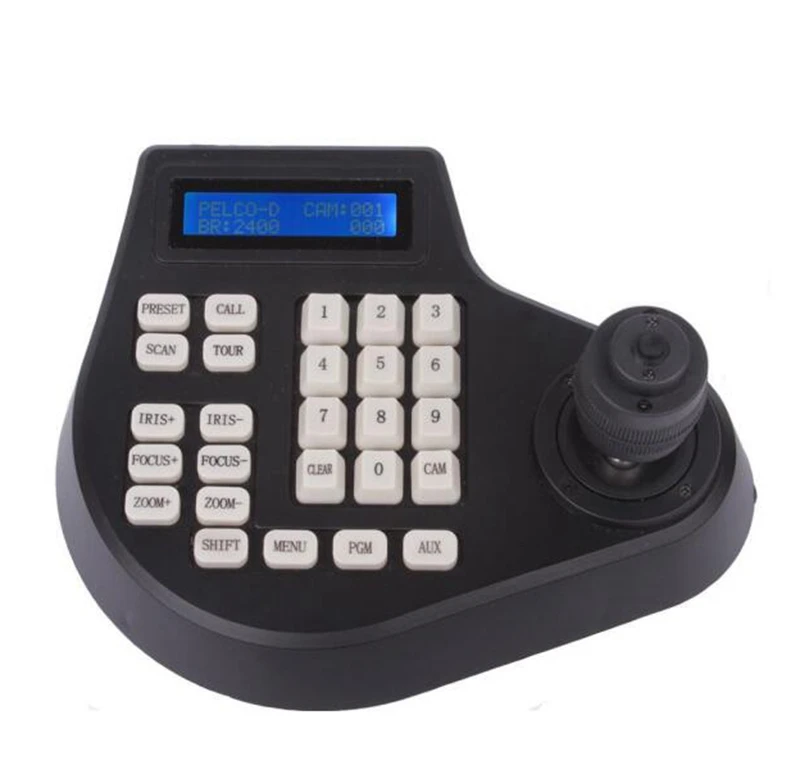

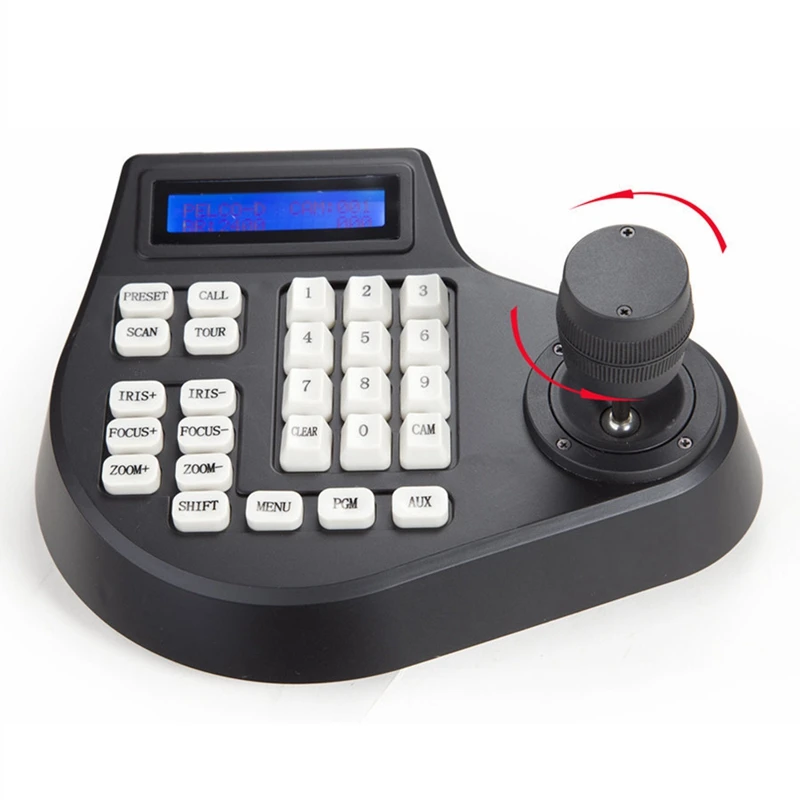

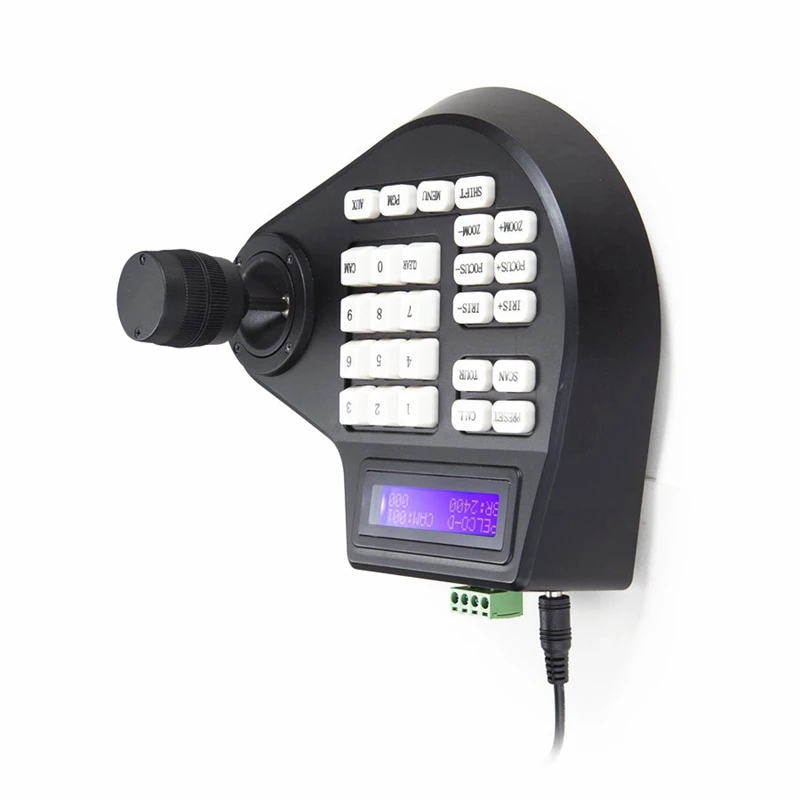

Mini CCTV Joystick Keyboard Controller LCD For AHD PTZ Speed Dome Camera

Description

Mini CCTV Joystick Keyboard Controller LCD for AHD PTZ Speed Dome Camera

Description:

The main functions of the keyboard include:

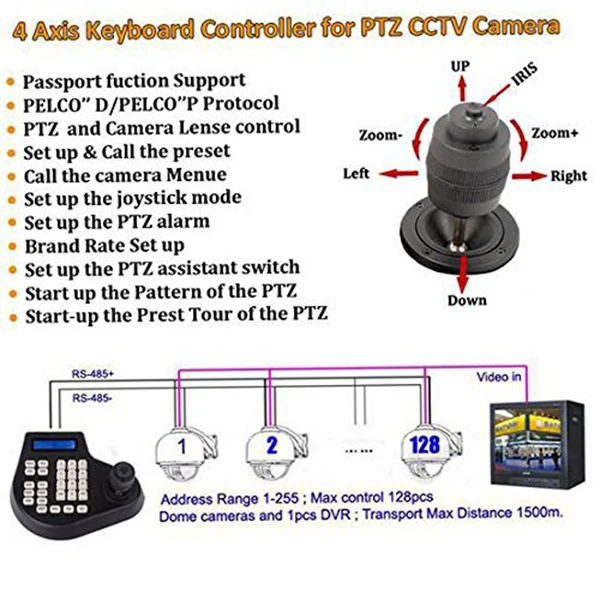

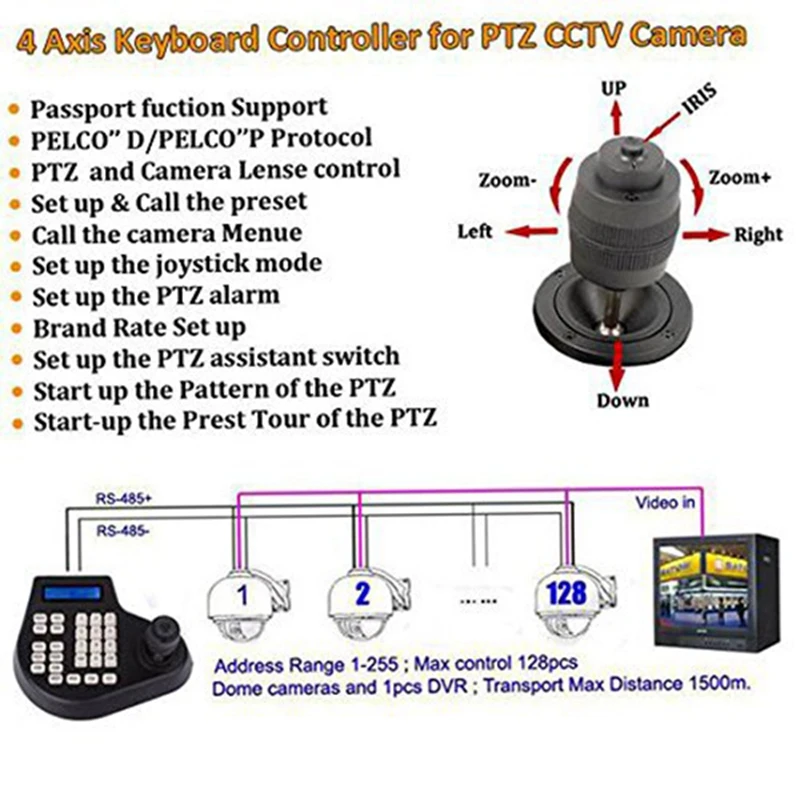

1. The keyboard output adopts photoelectric insulated 485 control, which provides strong anti-jamming and long-range transmission. 2. The range for dome camera or decoder address setup: 1~255.3. Variable-speed operation can be applied to the built-in dome of the high speed dome camera.

4. Pre-set positions can be setup and previewed in the high speed dome camera. 5. Up to four tour routes can be setup and previewed in the high speed dome camera, with each tour having a maximum of 16 pre-set positions, dwell time and speed for each pre-set positions programmable.

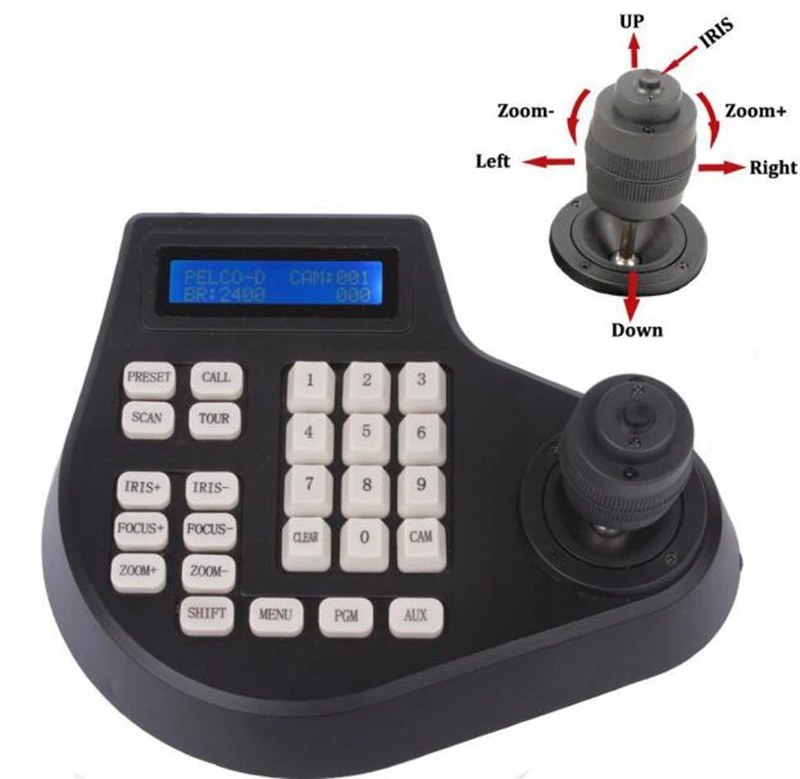

6. The high speed dome camera can be manually / automatically controlled.7. Lens zoom ratio, focus and iris can be manually controlled. 8. More than one terminals, such as dome cameras and decoders, can be controlled.

Feature:

1. Baud rate: 1200bps,2400bps,4800bps,9600bps,19200pbs,38400pb

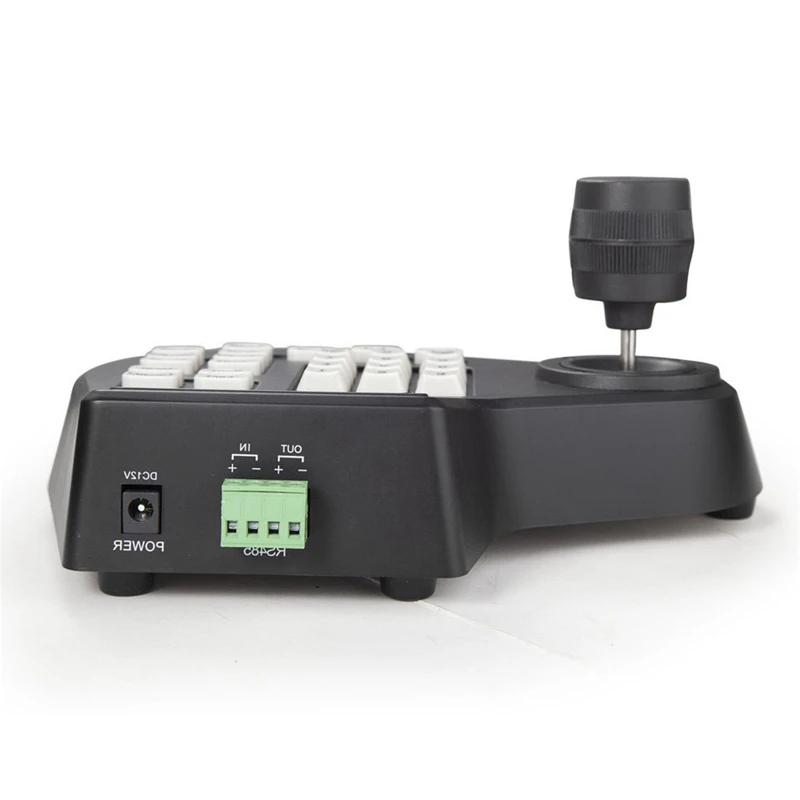

2. Communication: RS-485

3. Power input: DC 12V -1A

4. Communication distance: max 1500m

5. Can control max 128 speed domes

6. Password setup function

7. Ambient Temperature: 0 celsius degree~60 celsius degree

8. Relative Humidity:90%RH

9. Dimension: 205mm*168mm*48 mm

Colour: Black

material: plastic

type:3D / 4D

Package Contents:

1x PTZ Camera controller

1XDC Power

Plug Type :US Plug,it applies to Canada, India, Japan, Mexico, Thailand, the United States, the Philippines and so on./ EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
